Prof. Dr. R. Capanna´s solution
with the LINK Embrace Shoulder System
Patient case from Pisa, Italy
Prof. Dr. R. Capanna
Hospital Cisanello
Pisa, Italy

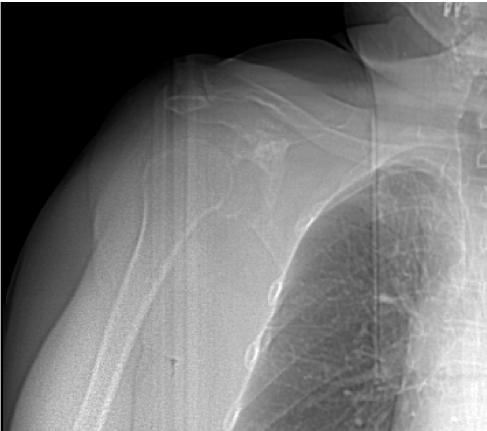

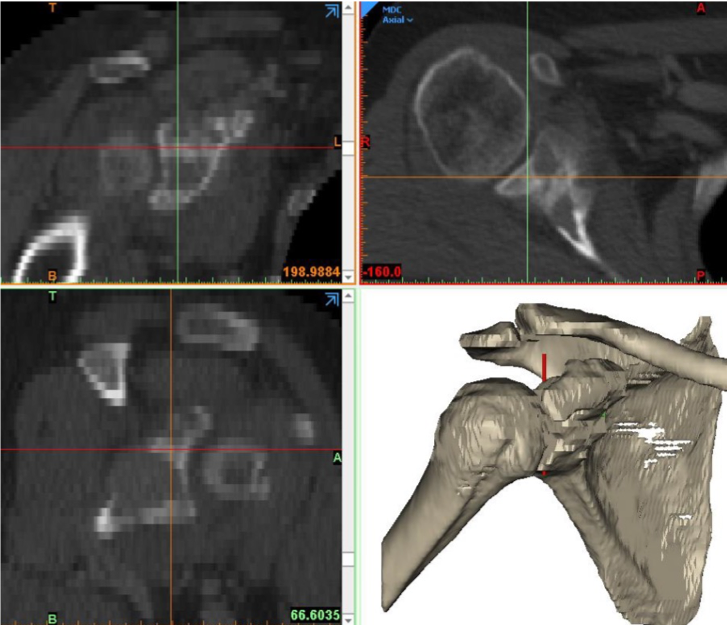

Pre-op
- 60 year-old patient
- Sarcoma of right scapula
- Requested supply of
- Total scapula with glenoideal head
- Extended reverse tray
- Constrained PE-insert
- Based on standard LINK Embrace components
- Humeral fixation with cemented Embrace stem

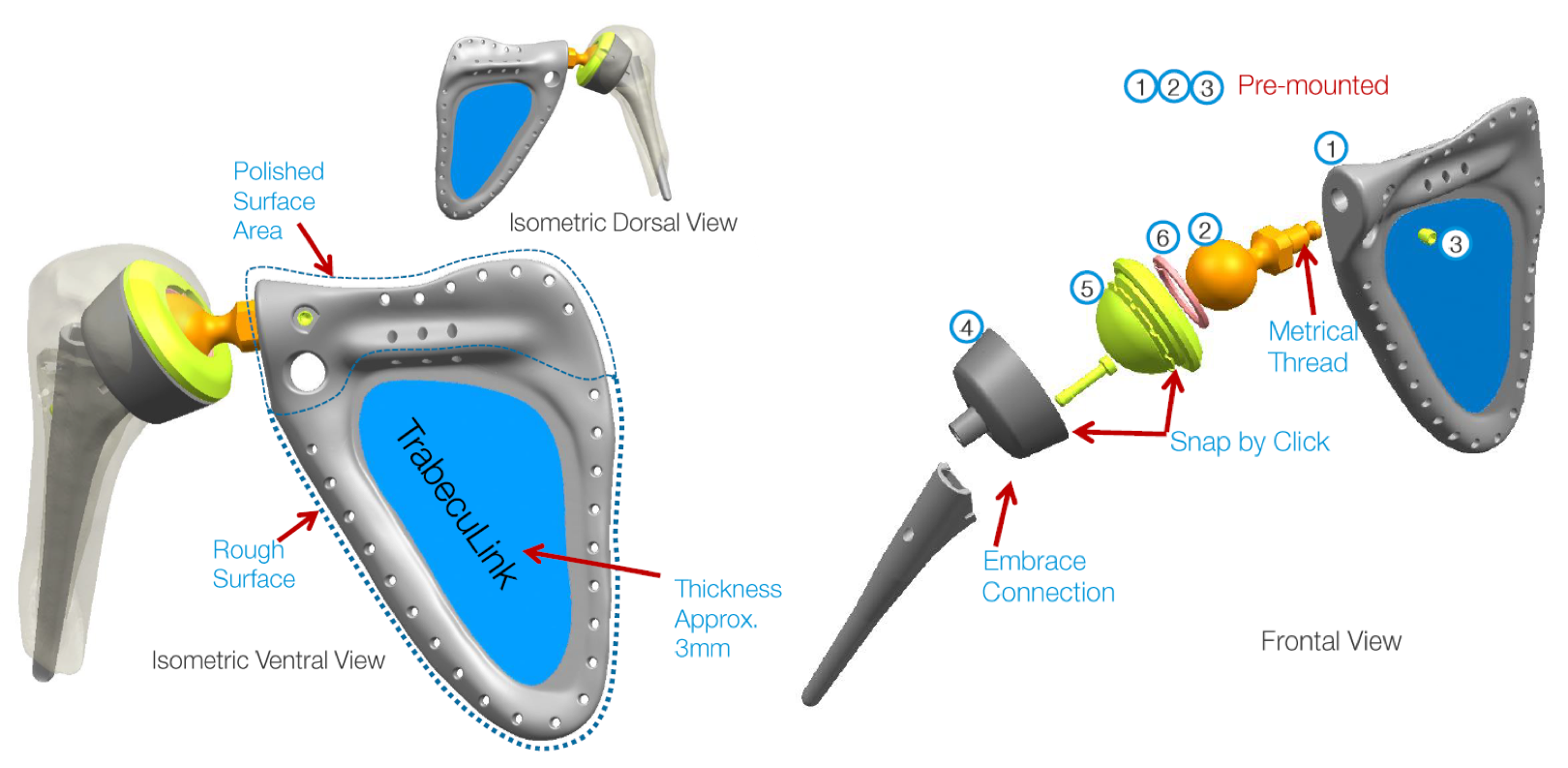

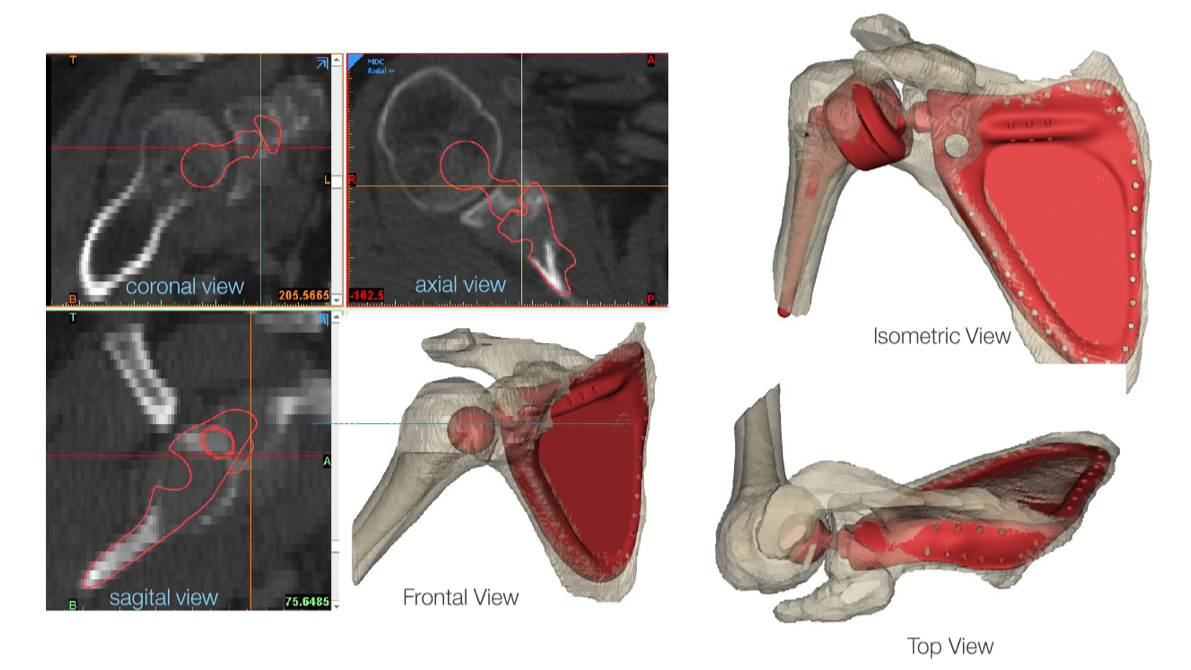

Concept proposal of customLINK department

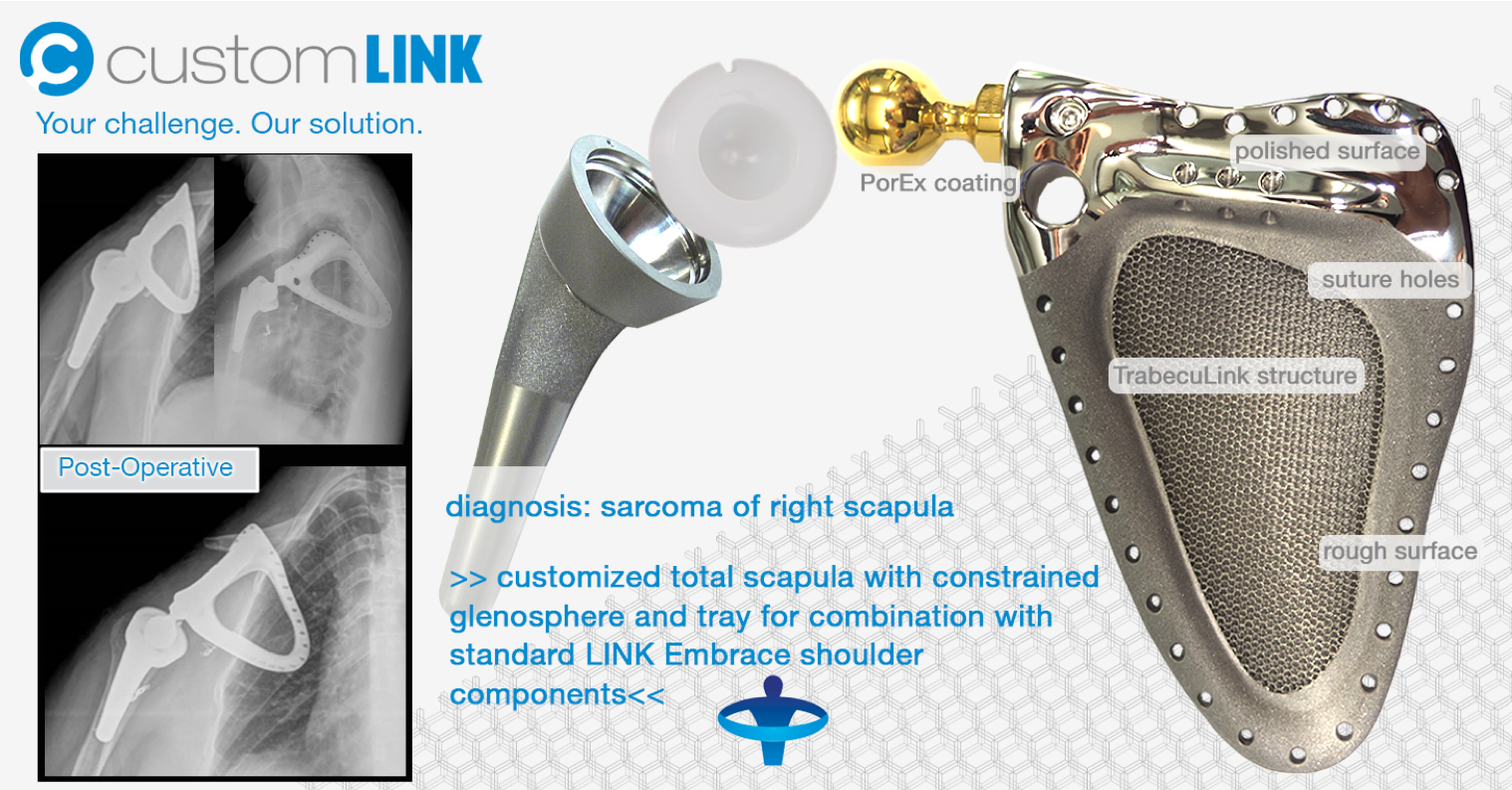

- Total scapula replacement, right side, made of Ti6Al4V, with TrabecuLink structure
- Glenoideal head, 22 mm diameter, made of Ti6Al4V with hypoallergic PorEx coating (TiNbN)
- Extended Reverse Tray
- Constrained PE-Insert with locking ring
- Scapular replacement with special TrabecuLink filling for promotion of connective tissue attachment

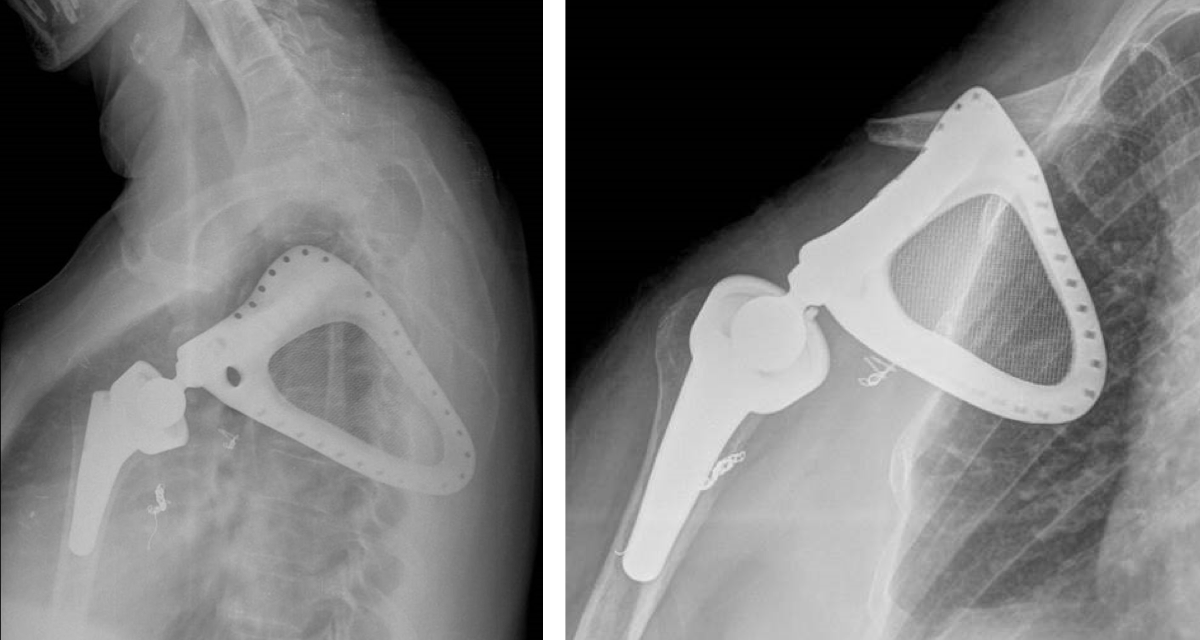

Post-op x-rays
