Minimal bone resection by preserving the femoral neck
Anatomical stem shape and integral anteversion
Collar allows physiologic compressive forces to be transmitted back into the femur ^{1, 2}
98.3% survival rate after 11 years³

Physiological force transmission

Two different stem curvatures allow adaptation to the individual patient’s anatomy - for extended support of the implant on the Shenton’s line. The successful ribbed structure provides secure, rotationally stable fixation in the compressed cancellous bone.^{4, 5}

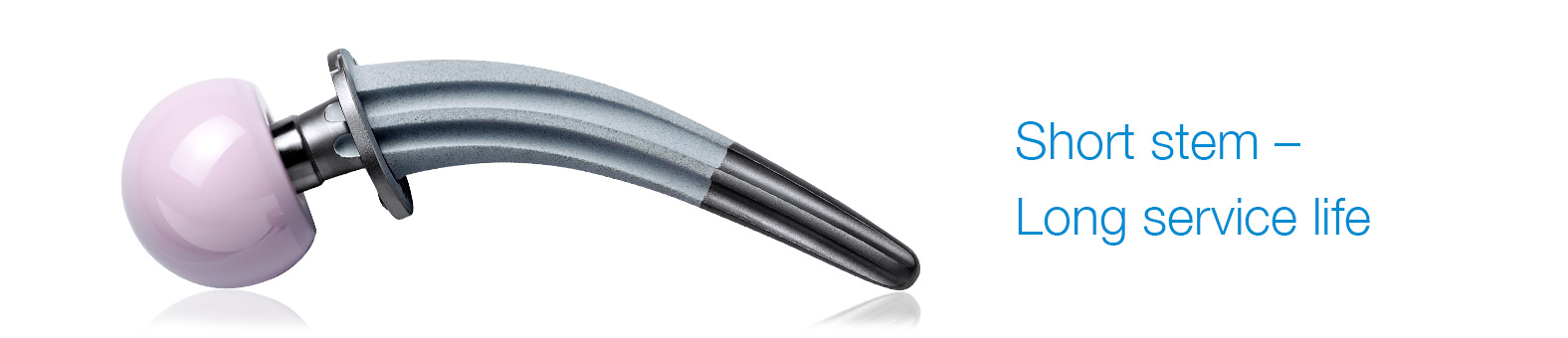

Femoral neck-preserving, bioharmonic hip prosthesis

The C.F.P. Hip Prosthesis Stem enables femoral neck-preserving, cementless implantation. It was developed specifically for young, active patients, whose long life expectancy means that they are more likely than older patients to experience aseptic loosening with a conventional hip prosthesis.

The design of the C.F.P. Hip Prosthesis Stem incorporates biomechanical loading and anchoring principles, conforming to the hip anatomy and physiology. This ensures stable, stress-resistant anchoring of the prosthesis.³

The bone-preserving resection, preserving the femoral neck, creates favorable conditions for later interventions.

Reduced stress shielding

The pronounced ribbed profile and the LINK Tilastan alloy give the stem a high level of structural and material-based elasticity compared to other hip systems. This in turn minimizes femoral stiffness, thereby reducing “stress shielding”.⁶

Successful long-term outcomes

Many long-term outcomes with survival rates of up to 98.3 percent after 11 years emphasize the success and great reliability of the C.F.P. stem.³

Latest ODEP ratings can be found at www.odep.org.uk

Luxation of the acetabular head

Resection of the acetabular head

Resection of the proximal femur

Identification of the medullary canal opening

Opening of the medullary canal

Determining the stem size

Driving in the compressor

Reaming the femoral neck

Preparing the trial reduction

Trial reduction

Implantation of the stem

Driving in the stem

Final trial reduction

Positioning the prosthesis head

The C.F.P. prosthesis stem in situ

C.F.P. - Impl. Instr. OP

Name: 671_CFP_OP-Impl-Instr_en_2020-01_005.pdf

Size: 1 MB

C.F.P. XS - Flyer

Name: 671_CFP-XS_Flyer_en_2017-08_002.pdf

Size: 341 KB

Uncemented Hip Stems

Name: 114_SPII_Uncemented_Hip_Stems_ODEP_Rating_Flyer_en_2023-08_002.pdf

Size: 5 MB

Prendergast, P., & Taylor, D. (1990). Stress analysis of the proximo-medial femur after total hip replacement. Journal of Biomedical Science, 12(5), pp. 379-382.
Keaveny, T., & Bartel, D. (1993). Effects of porous coating and collar support on early load transfer for a cementless hip prosthesis. Journal of Biomechanics, 26(10), pp. 1205-1216.
Kendoff, D., Citak, M., Egidy, C., O'Loughlin, P., & Gehrke, T. (2013). Eleven-year results of the anatomic coated CFP stem in primary total hip arthroplasty. The Journal of Arthroplasty, 28(6), pp. 1047-1051.
Noble, P., Alexander, J., Lindahl, L., Yew, D., Granberry, W., & Tullos, H. (1988). The anatomic basis of femoral component design. Clinical Orthopaedics and Related Research(235), pp. 148-165.
Denaro, V., & Fornasier, V. (2000). Fill, fit and conformation - an anatomical and morphometric study of a hip component in total hip arthroplasty (Rippen-Link). European Journal of Orthopaedic Surgery & Traumatology, 10(4), pp. 239-247.
Langhans, M., Hofman, D., Ecke, H., & Nietert, M. (1992). Der Einfluß der Formgebung des Prothesenschaftes auf die Beanspruchung des proximalen Femurs. Unfallchirurgie, 18(5), pp. 266-273.
