Dr. Marcus Beuchel´s solution
with the LINK Embrace Shoulder System

Oldenburg, Germany


Dr. Marcus Beuchel

Head of the Shoulder Department
Pius Hospital
Oldenburg, Germany

Pre-op

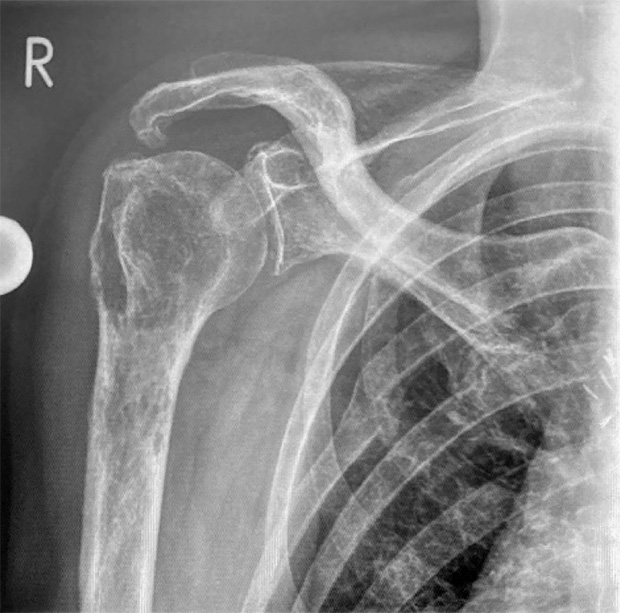

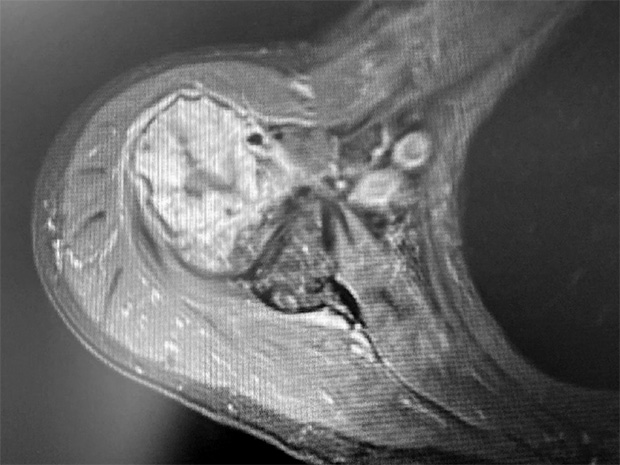

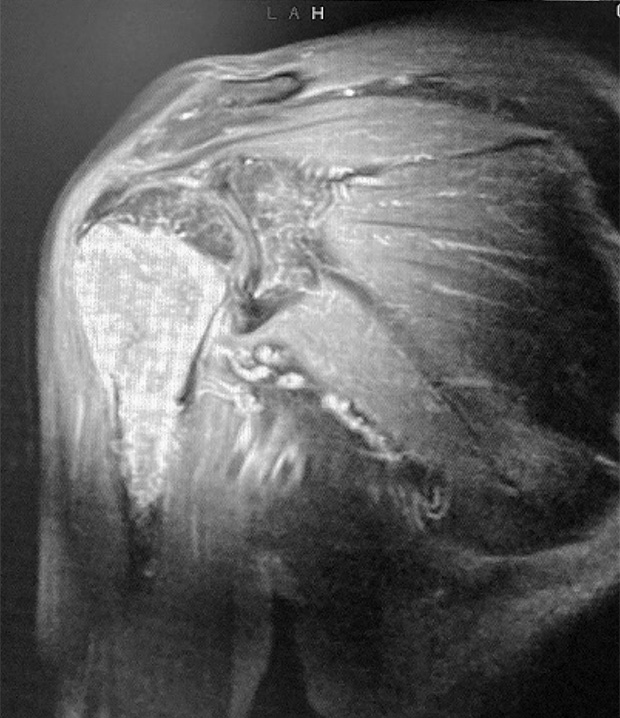

Pictures 1 and 2: X-ray a-p and MRI

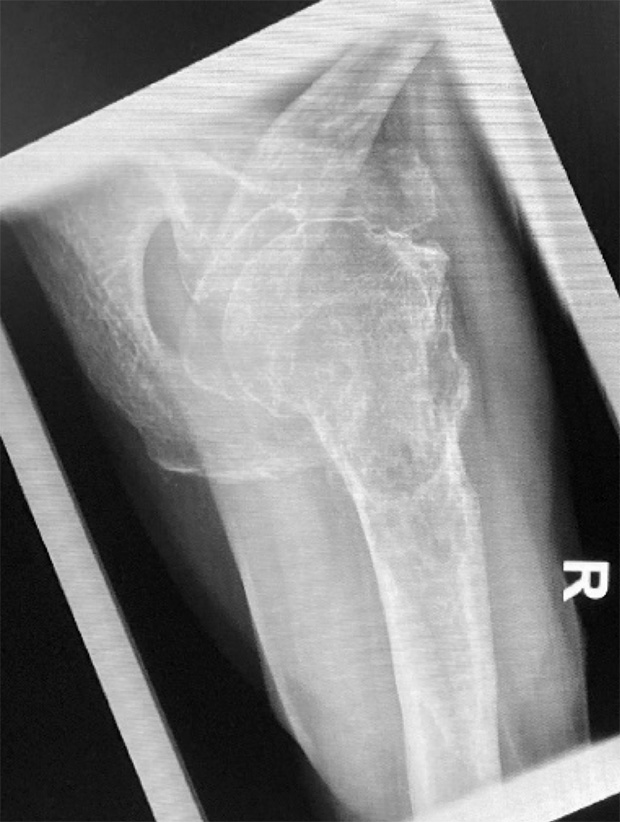

Picture 3 and 4: X-ray m-l and MRI

Patient:


  •     73 year old male with bone tumor in the proximal humerus right side



Surgical plan:


  •     Humeral resection appr. 5 cm below surgical neck
  •     Joint restoration using a proximal humerus component
  •     Cemented humeral stem fixation
  •     Reverse joint configuration with appropriate deltoid tensioning

Intra-op

Picture 5, 6, 7: Exposure of humeral head, resected head and defect

Procedure


  • Acces to the joint via delto-pectoral approach
  • Exposure and resection of proximal humerus appr.6 cm below head

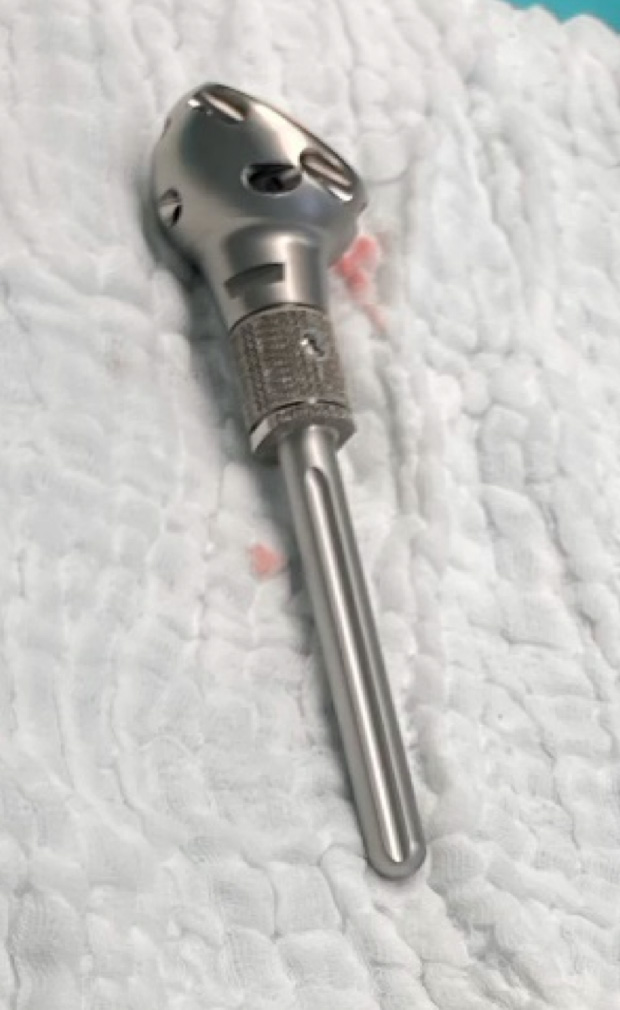

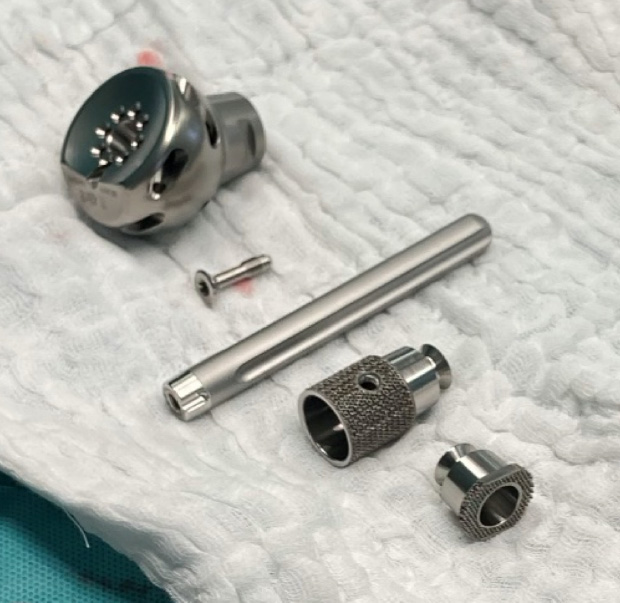

Picture 8 and 9: MEGA C UL Components and assembled humeral MEGA C UL component

Procedure continued ….


  • Implantation of Embrace Reverse Glenoid Baseplate with...
  • Pressfit fixation and 3 cortical locking screws superior, inferior, posterior
  • Implantation of Embrace Glenosphere in 39 mm diameter, eccentrical
  • Selection, assembly, insertion and trialing of LINK Megasystem C Upper Limb trial components for humeral replacement
  • Assembly of MEGA C Upper Limb System components, consisting of MEGA C UL Proximal Body Size 42, 20 mm Humeral Segment wit TrabecuLink surface and  Cemented Stem, Dia. 11mm, 90 mm length, Adapters and Fixation Screws

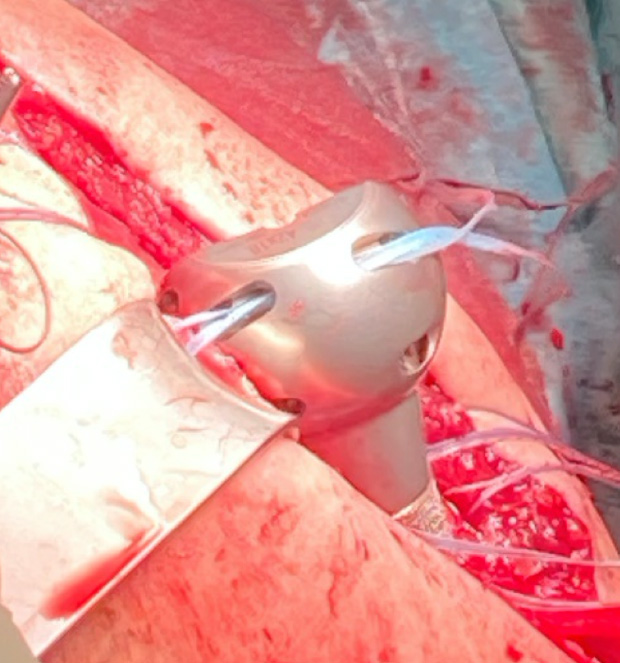

Pictures 10 and 11: Application of suture tapes for reattachment of soft tissue

Procedure continued ….

  • Preparation and application of high viscosity bone cement
  • Implantation of humeral component
  • Application of surgical sutures for muscle reattachment
  • Mounting of LINK Embrace Reverse Tray, neutral version
  • Implantation of Embrace Reverse Insert height 0
  • Final reduction with good stability and ROM
  • Wound closure



Post-op

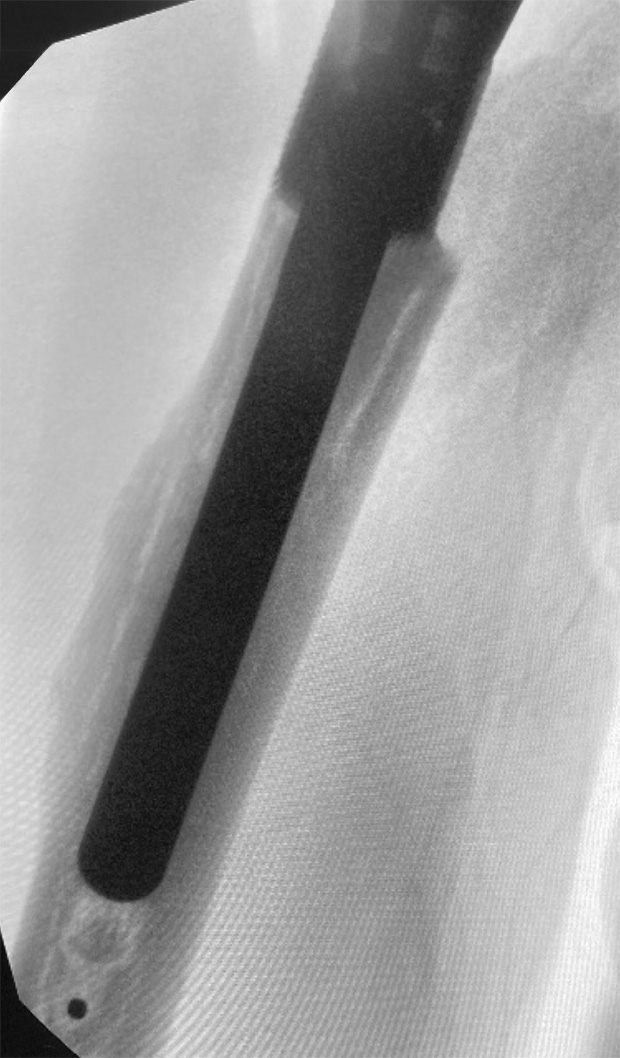

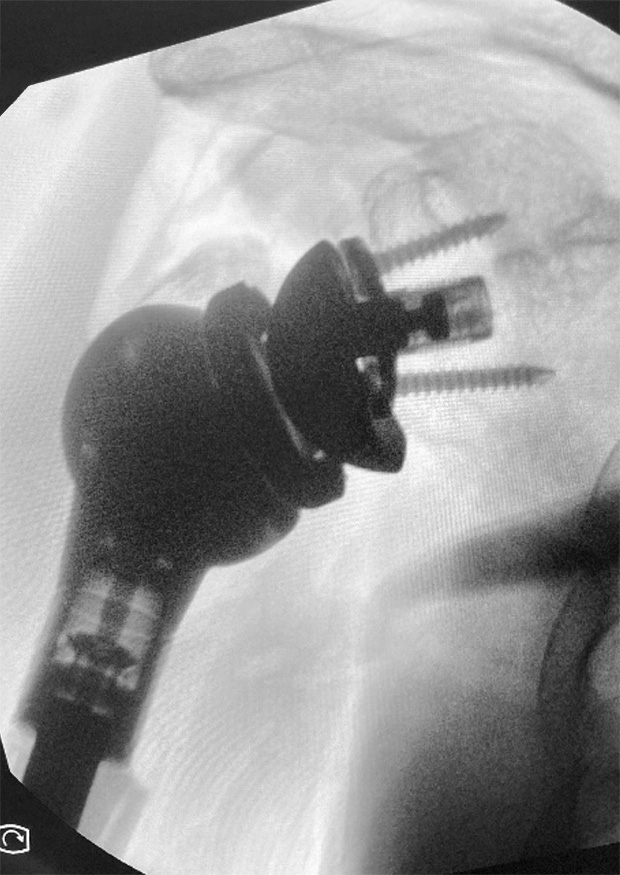

  • Pictures 12 and 13: post op x-rays with MEGA C Upper Limb and LINK Embrace components
  • Good caudal overhang of eccentrical glenosphere and voluminous Proximal Body for appropriate deltoid pre-tensioning
  • Distal Stem, cemented and well fixed
