膝关节假体

  • LINK 单髁假体
  • GEMINI SL 膝关节表面置换体
  • LINK Endo-Model
  • LINK Endo-Model SL

LINK 单髁假体

  • 亮点
  • 了解更多
  • LINK 单髁假体
  • 外科技术
  • 下载
  • 来源
    • 植入简便1, 3, 5

    • 结果可复制1, 10, 11, 12

    • 长期积累的临床经验1, 5, 10, 11

    To view this video please enable JavaScript, and consider upgrading to a web browser that supports HTML5 video

    股骨制备

    • 最大程度地保留骨骼和保护软组织2, 6, 14

    ”曲面对平面“ , 这种设计成就了优异的活动范围,保障患者术后膝关节得到足够的活动度13:

    • 不受限制的运动学特性3, 9, 13
    • 与其他植入体相比,即使在极少使用的情况下也得到了出色的结果11, 15, 16
    • 对称的造型设计可实现对内侧和外侧膝关节病的治疗2


    经过验证的较长使用寿命

    • 出色的临床结果证明产品安全性高11,12
    • 丰富的临床经验12
    • 三十多年未变的造型设计
    • 记录了出色的临床结果12

    LINK 单髁假体是 1969 年首次实现植入的。自从 1981 年的最后一次修改以来,这种成功的植入体设计一直保持不变:

    形状符合人体结构的组件——多中心股骨设计可以实现适应解剖结构的重建:

    • 经过验证的多中心股骨设计10, 12
    • 为了将来的修复保留骨骼的设计 14

    全聚乙烯(all-poly)的设计

    此版本有四个高度可供选择:7、9、11 和 13 mm,四个直径:45、50、55 和 58 mm。



    带有金属支架的设计 (metal-backed)

    此版本有四个高度可供选择:8、9、11 和 13 mm,三种直径:45、50 和 55 mm。

    LINK PorEx 表面改性


    • 显着减少塑料磨损和金属离子的释放1
    • 类似陶瓷的磨损特性1
    • 出色的硬度1

    股骨组件
    股骨组件有四个规格:

    •    小 (16 x 40 mm)
    •    中小 (17 x 46 mm)
    •    中 (18 x 52 mm)
    •    大 (20 x 60 mm)

    在可能再次手术的情况下,与底切的销钉结构相比,可以更容易进行外植14。

    胫骨平台
    由于其对称的形状,胫骨平台可以从内侧和外侧插入。尺寸与胫骨头解剖结构的形状相匹配。

    To view this video please enable JavaScript, and consider upgrading to a web browser that supports HTML5 video

    LINK Sled - OP

    Name: 7401_LINK_SLED_MITUS_ART_OP-Impl-Instr_en_2023-04_001.pdf
    文件 4 MB

    LINK SLED Prosthesis with MITUS Instrument Set

    Name: 7291_LINK_SLED_MITUS_OP-Impl-Instr_en_2023-04_001.pdf
    文件 3 MB
    1. Ackroyd, C., 2003. Journal of Bone & Joint surgery BR - Medial compartment arthroplasty of the knee. Bristol: s.n.
    2. Ashraf, T., Newman, J., Evans, R. & Ackroyd, C., 2002. Journal of Bone & Joint surgery BR - Lateral unicompartmental knee replacement. s.l.:From Southmead Hospital, Bristol, England.
    3. Dreyer, P. D. J., Späh, D. H. & Teichner, D. A., 1984. Längerfristige Erfahrungen mit Schlittenendoprothesen St. Georg - Zeitschrift für Orthopädie. Bremen: s.n.
    4. Internal Technical Report, kein Datum Internal technical report: Study of the influence of TiNbN-coating on the ion release of CoCrMo-alloys in SBF buffer simulator testing. s.l.:s.n.
    5. Mackinnon, J., Young, S. & Baily , R., 1988. The St Georg sledge for unicompartmental replacement of the knee - Journal of Bone&Joint Surgery BR. Bristol: s.n.
    6. Müller, J., 2016. Link Schlittenprothese [Interview] (Juli 2016).
    7. Müller, J., 2018. Unicondylar Sleds - Indications & Overview, Suzhou, China: 2018 LINK SLED Summit Symposium.
    8. Newman, J. & et. al., 2009. Unicompartmental or total knee replacement. The 15-year results of a prospective randomised controlled trial - Journal of Bone & Joint Surgery. s.l.:s.n.
    9. Nieder, E., 1991. Schlittenprothese, Rotationsknie und Scharnierprothese Modell St. Georg und Endo Modell. Orthopäde, pp. 170-180.
    10. Steele, R., Evans, R., Achroyd, C. & Newman, J., 2006. Survivorship of the St. Georg medial sled unicompartmental knee replacement beyond ten years. s.l.:s.n.
    11. Swedish Knee Arthroplasty Register , 2012. Swedish Knee Arthoplasty Register - Annual Report 2012. [Online]
      Available at: http://www.myknee.se/pdf/117_SKAR_2012_Engl_1.0.pdf
      [Accessed on March 26, 2020].
    12. Swedish Knee Arthroplasty Register, 2015. Swedish knee arthroplasty register - Annual report 2015. [Online]
      Available at: http://www.myknee.se
      [Zugriff am 4 Juli 2018].
    13. Weale, A., Murray, D., Newman, J. & Ackroyd, C., 1999. Journal of bone & joint surgery BR - The length of the patellar tendon after unicompartmental and total knee replacement. Bristol: s.n.
    14. Wohlgemut, D. G., 2009. Die Funktion des Kniegelenks wiederherstellen - Minimalinvasiver Kniegelenkersatz [Interview] 2009.
    15. Gleeson, R.E., Evans, R., Ackroyd, C.E., Webb, J., Newman, J.H.: Fixed or Mobile Bearing Unicompartmental Knee Replacement? Comparative Cohort Study, The Knee 11 (2004) 379-384.
    16. Gleeson, The Swedish Knee Arthroplasty Register, Validity and Outcome, Department of Orthopedics Lund University Hospital, SE-221 85 Lund, Sweden, 2011.

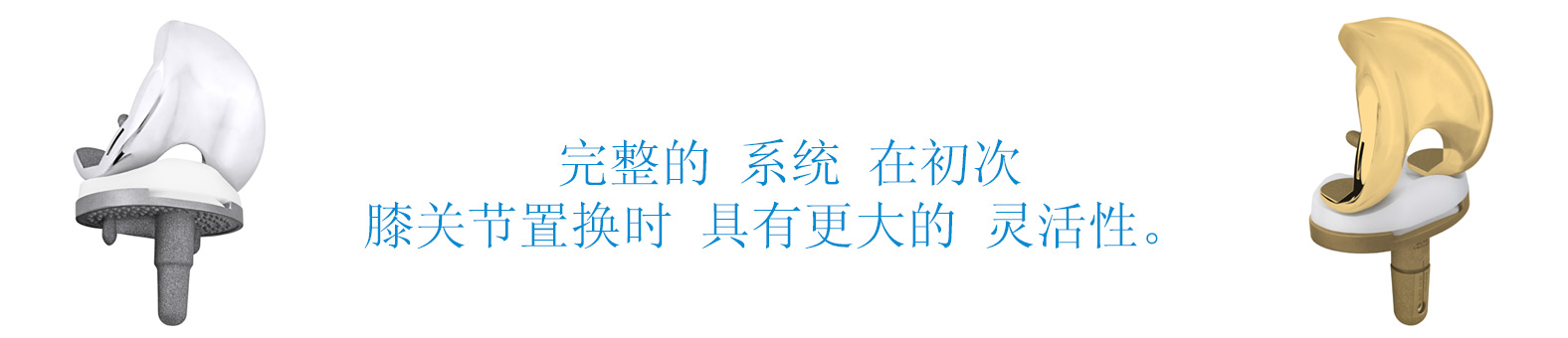

    GEMINI SL 膝关节表面置换体

    • 亮点
    • 了解更多
    • 固定支座
    • 移动支座
    • E-dur
    • SPAR-K
    • Video
    • 下载
    • 来源
    • 关节稳定性和运动学特性良好

    • 初次稳定性高

    • 具有生理活动自由度和生理机能的原生关节重建1, 2, 3


    成功的长期临床结果4

    • 5 年 97.5%

    • 10 年 95.5%

    • 扩展的适应症范围,丰富的修复方法,具有术中灵活性

    To view this video please enable JavaScript, and consider upgrading to a web browser that supports HTML5 video

    To view this video please enable JavaScript, and consider upgrading to a web browser that supports HTML5 video

    设计型式

    多种多样的设计型式使得对于各种不同的骨骼结构和可能的不兼容性实现个性化的修复。
    该系统可实现骨水泥的和无骨水泥的锚固。
    额外的 PorEx® 表面改性可以减少离子释放,并且由于摩擦系数较低可以降低磨损14。
    模块化胫骨金属支架使得胫骨柄可以适配,这可以骨骼条件不佳的情况下确保稳定性7。

    此外,还提供具有整体式胫骨金属支架的 SpheroGrip® 规格。

    版本

    提供保留交叉韧带型(CR)和置换交叉韧带型(PS)固定支座,以及移动支座(CR/CS)。GEMINI® SL® 固定支座由单个胫骨金属支架组成,既可以实现保留交叉韧带(CR),也可以实现置换交叉韧带(PS)。这简化了修复选择,并实现了术中灵活性。


    • 适应解剖结构的胫骨
    • 模块化可组合、适应解剖结构的假体组件
    • 针对任何身材广泛的尺寸选择范围,无论性别或身份认同5
    • 精细的尺寸分级可以原生地重建股骨后髁偏距
    • 牢固地锚固防止剪切力和旋转力6
    • 通过扩展的术中灵活性,为各种各样的患者和适应症提供了丰富的修复方法
    • 发展为原生关节运动学特性的重建,并且在功能长期成功的情况下具有较高的弯曲度

    GEMINI® SL® 后稳定型(PS)固定支座的特点

    • Post-Cam 耦合器可以媲美原生膝盖13
    • 与枢轴较大的接触面呈现均匀
    • 对于枢轴的表面负荷小13
    • 可靠且安全的耦合机构13
    • 脱位风险低13。
    • 屈曲运动过程中增加接触表面,降低接触应力,降低骨折风险和磨损13。

    对于关节稳定性良好的完整韧带和囊肿组织,保留交叉韧带型(CR)固定支座可用于重建原生关节。

    吻合度中等的保留交叉韧带型固定支座通过更大的负荷分布降低了对骨骼的负荷,从而实现了原生的 股骨后滚和 股骨旋转15。

    如果交叉韧带不足或被摘除,则使用后稳定型(PS)固定支座。

    GEMINI® SL® 移动支座的旋转自由度有助于在膝盖弯曲时使髌股和股胫关节保持对准。聚乙烯制胫骨平台旋转产生的自我对准改善了术后运动学特性11。

    抛光的胫骨基板改善了磨损特性。10, 11

    GEMINI® SL® 移动支座的优点在于高度吻合的关节形状,减少了表面和底面应力分布,同时移动支座关节可减少骨骼应力在界面的增长9。
    良好的活动性并增加了关节的面积
    即使后十字韧带缺损,较高的关节吻合度也可以使膝盖稳定8, 9, 12


    抛光的胫骨基板改善了磨损特性。10, 11

    牢固的胫骨平台锚固
    独特的燕尾型导轨可在很大程度上消除胫骨平台的脱位。

    移动支座的设计方案可以显着增加接触面积,减少接触应力8, 9,并在自由旋转的情况下实现较高的关节吻合度,从而改善了运动学性能。10

    Vit-E 平台的生产中使用了维生素 E 作为抗氧化剂,以中和因高度交联而产生的自由基,从而保护材料。产品的机械性能和生物相容性得以保留19,20,21,22,23



    通过辐照高度交联

    • 改善了针对脱层及磨损的耐用性——减轻可达 94%16,17


    掺入维生素 E

    • 通过富集维生素 E 或者合成可用产品α-生育酚稳定 UHMWPE(超高分子量聚乙烯)。    减少自由基可提高耐久性。脆性降低18

    • X-Linkining 可提高耐用性

    • 由于不采用热处理,辐照的所有优点(耐疲劳、高强度)都得以保留,同时机械特性(耐疲劳、伸长率、韧度)并无减弱。

    • 维生素 E 具有抗菌功效。

    访问我们的 spar-k 微型站点,获取有关新的 spar-k 器械的信息:

    spark.linkorthopaedics.com

    To view this video please enable JavaScript, and consider upgrading to a web browser that supports HTML5 video

    LINK PERSEUS - GEMINI SL

    To view this video please enable JavaScript, and consider upgrading to a web browser that supports HTML5 video

    GEMINI SL - ODEP Flyer

    Name: 737_GEMINI_SL_Flyer_ODEP_rating_EN_2024-11_005.pdf
    文件 2 MB

    GEMINI SL - Teaserflyer

    Name: 737_GEMINI_SL_Teaser_en_2020-11_002.pdf
    文件 4 MB

    GEMINI SL - Flyer

    Name: 737_GEMINI_SL_Flyer_en_2018-03_003.pdf
    文件 10 MB

    GEMINI SL - OP, Impl. Instr.

    Name: 737_GEMINI_SL_OP_Impl_Instr_en_2021-03_001.pdf
    文件 5 MB

    GEMINI SL E-DUR

    Name: 737_GEMINI_SL_E-DUR_Suppl_en_2022-08_002.pdf
    文件 1 MB

    GEMINI SL with SPAR-K - Surgical Technique

    Name: 748_GEMINI_SL_SPAR-K_OP_Impl_Instr_en_2020-12_003.pdf
    文件 6 MB

    spar-k - Teaserflyer

    Name: 748_SPAR-K_Teaserflyer_en_2020-03_003.pdf
    文件 737 KB

    GEMINI SL - MIT-K Instruments

    Name: 732_MIT-K_Instr_en_2021-09_004.pdf
    文件 3 MB

    GEMINI SL - MIT-K Surgical Technique

    Name: 732_MIT-K_OP_en_2021-09_006.pdf
    文件 4 MB

    GEMINI SL EXTRABONE

    Name: 731_Extrabone_Flyer_en_2021-10_002.pdf
    文件 960 KB

    GEMINI SL - Literature Research

    Name: 7379_GEMINI_SL_Literature_en_2025-02_002.pdf
    文件 3 MB
    1. H. Thabe, „Auswirkungen verschiedener konstruktiver Prothesenmerkmale auf Langzeitergebnisse“, Akt Rheumatol 2013;38.
    2. Internal data - H. Thabe, „Aspekte zum Konzept der beweglichen Tibiaplateaukonstruktion, April 2000.
    3. J. Goodfellow, “The Mechanics of the Knee and Prosthesis Design”. J Bone Joint Surg Br 1978; 60:358-369
    4. ripo.cineca.it/pdf/relazione_2016_v19_inglese.pdf
    5. Internal data - H. Thabe, “ Arthroprometic sizing in TKA / GEMINI MK2”
    6. P.S. Walker, “A Comparative Study of Uncemented Tibial Components”. J Arthroplasty 1990; 5:245-253
    7. A. Completo et al., “The influence of different tibial stem designs in load sharing and stability at the cement-bone interface in revision TKA”. Knee 2008;15:227-232
    8. S. Bignozzi, “Three different cruciate-sacrificing TKA designs: minor intraoperative kinematic differences and negligible clinical differences”. Knee Surg Sports Traumatol Arthrosc 2014; 22:3113-3120
    9. B. Innocenti, GEMINI SL Mobile Bearing / Fixed Bearing CR Biomechanical analysis in healthy and deficient PCL patient LINK 999_WP_003_2017_Gemini-SL_en, 2017
    10. J. Callaghan, “Mobile-Bearing Knee Replacement: Concept and Results”. AAOS Instructional Course Lectures 2001; 50:431-449
    11. D. Dennis, “Mobile Bearing Total Knee Arthroplasty Design Factors in Minimizing Wear”. Clin Orthop Relat Res. 2006; 452:70-77
    12. Internal data - S. Greenwald, “Classification of Mobile Bearing Knee Design: Mobility and Constraint”, 2002
    13. B. Innocenti, GEMINI SL Fixed Bearing PS: Biomechanical Analysis of the Post-Cam System. LINK 999_WP_002_2017_Gemini-SL_en, 2019
    14. Internal technical report: Study of the influence of TiNbN-coating on the ion release of CrCrMo-alloys in SBF buffer simulator testing.
    15. GR Scuderi, WN Scott, “Total Knee Arthroplasty. What we have learned.”1996; Am J Knee Surg 9:73-75
    16. S. M. Kurtz, „The Origins and Adaptations of UHMWPE for Knee Replacement“, in UHMWPE Biomaterials Handbook, S. M. Kurtz, Ed., Burlington, MA Academic Press 2009.
    17. S. M. Kurtz, „Advances in the Processing, Sterilization, and Crosslinking of Ultra-high Molecular Weight Polyethylene for Total Joint Arthroplasty“, Biomaterials 1999; 20:1659-1687.
    18. E. M. Brach del Prever, „UHMWPE for Arthroplasty: Past or Future?“, J Orthopaed Traumatol 2009; 10:1-8
    19. Produktakte W. LINK (Quadrant, MediTECH Data Sheet)
    20. E. Oral, „Characterization of Irradiated Blends of Alpha-tocopherol and UHMWPE“, Biomaterials 2005; 26(33):6657-6663.
    21. E. Oral, „Highly Crosslinked UHMWPE Doped with Vitamin E“, in UHMWPE Biomaterials Handbook, S. M. Kurtz, Ed., Burlington, MA Academic Press 2009.
    22. S. M. Kurtz, „Vitamin-E-Blended UHMWPE Biomaterials“, in UHMWPE Biomaterials Handbook, S. M. Kurtz, Ed., Burlington, MA Academic Press 2009.
    23. S. M. Kurtz, „Trace Concentration of Vitamin E Protect Radiation Crosslinked UHMWPE from Oxidative Degradation“, J Biomed Mater Res A 2008; 549-563
    24. B. Innocenti, Biomechanical analysis of GEMINI SL total knee replacement implant designs up to 155° of flexion. LINK 999_WP_001_2017_Gemini-SL_en, 2019

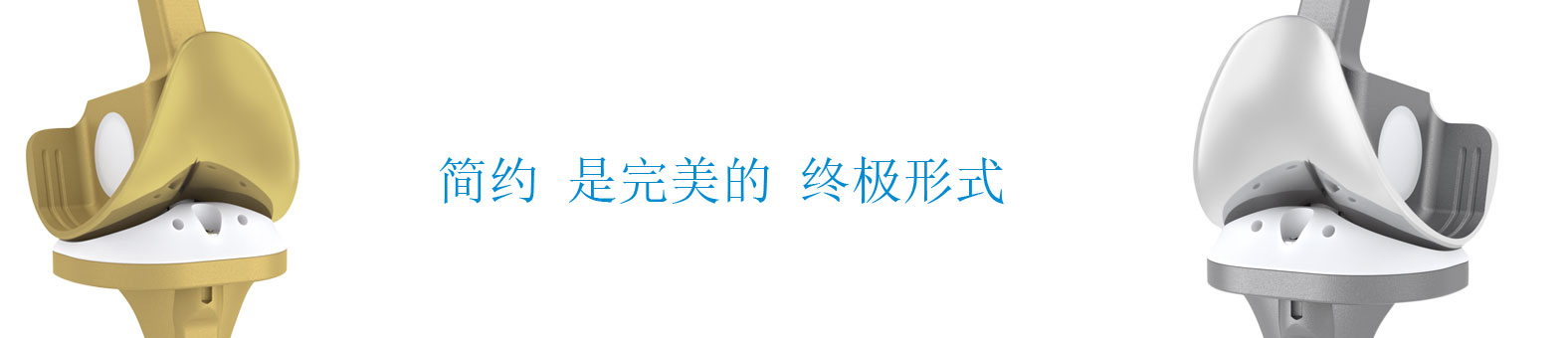

    LINK Endo-Model

    • 亮点
    • 了解更多
    • LINK Endo-Model Standard
    • LINK Endo-Model – M
    • LINK Endo-Model – W*
    • 外科技术
    • 40 年 Endo-Model
    • 下载
    • 来源
    • 经过三十多年的验证1

    • 通过运动产生强大性能2

    • 可靠的解决方案3, 4, 5

    Endo-Model 是一种具有内在稳定性的植入体。1, 5, 12得益于各种不同的选项(Endo-Model Standard,Endo-Model Modular,Endo-Model SL,Endo-Model W),具有很高的灵活性。

    三十多年来,Endo-Model® 已经证明了其价值,在临床应用上具有无与伦比的历史和出色的临床效果1, 2, 5, 8。即使在 15 年之后,Endo-Model 的存活率仍可达 98.5%9。

    Endo-Model® 可实现快速、简单的植入,并使植入体具有结构上设定的、良好的术后功能。10, 11因其出色的运动学特性,Endo-Model 尤其是在伸展性方面可达到很高的稳定性3, 11。植入体可使关节弯曲最多 142°、过曲 2°。

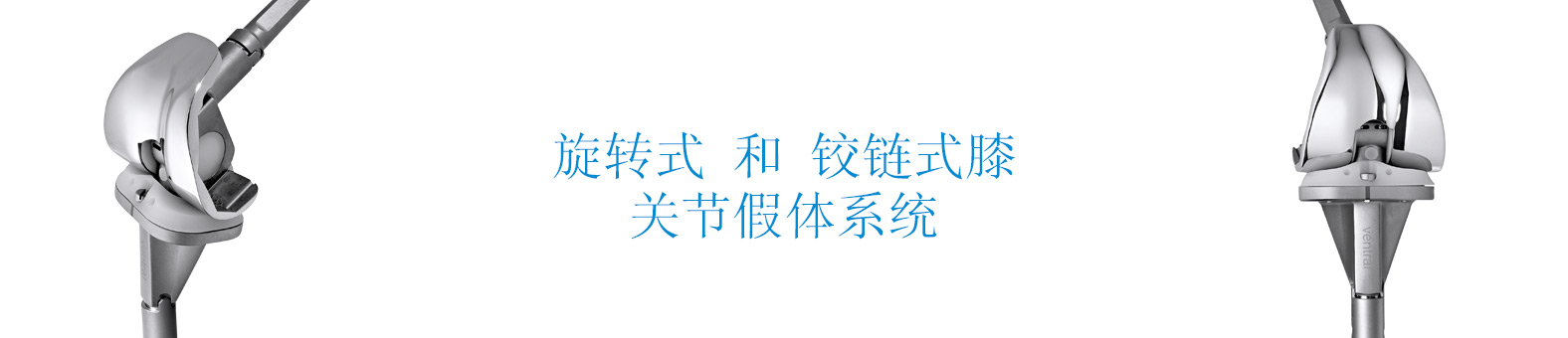

    无论是作为旋转式还是铰链式膝关节,LINK® Endo-Model® 用于初次修复和翻修修复已经超过三十多年。Endo-Model 旋转式膝关节假体为您提供了多种选择。
    植入 Endo-Model 有一种简单明了的方法2, 6。有一个髁内的和一个髓内的锚固,确保较高的稳定性和防菌效果1, 7。此外,LINK 还为对金属过敏的患者提供特殊的表面涂层(LINK PorEx)13。



    尺寸:
    4 种不同尺寸的股骨和胫骨组件,分别用于左右两侧 (XS, S, M, L)。


    材料:
    CoCrMo、UHMWPE 和 LINK PorEx


    机构:
    提供旋转式或者铰链式版本。


    固定类型:
    骨水泥


    定心星:
    由于定心星的形状,可以定位在髓管的正中心位置。此外,定心星形防止金属假体柄和皮质之间发生接触,从而减小了在承受弯曲负荷时骨骼中的应力峰值。3


    LINK PorEx 技术:
    对于金属敏感的患者,LINK 可以提供表面改性。13

    模块化髁内全膝关节内置假体 Endo-Model – M 是 Endo-Model® 标准型膝关节假体的补充。

    尺寸:
    4 种不同尺寸的股骨和胫骨组件,分别用于左右两侧 (XS, S, M, L)。


    假体柄尺寸:
    模块化假体柄,骨水泥 (EndoDur-S,LINK PorEx):50 mm – 280 mm
    模块化假体柄,无骨水泥,圆锥形 (Tilastan-S):50 mm – 280 mm
    模块化假体柄,无骨水泥,圆柱形 (Tilastan-S):60 mm (Ø 10 – 18 mm), 120 mm – 280 mm(每种尺寸均具有以下直径:Ø 12 – 18 mm)


    机构:
    提供旋转式和铰链式版本。


    固定类型:
    骨水泥和无骨水泥

    定心星:
    由于定心星的形状,可以定位在髓管的正中心位置。此外,定心星形防止金属假体柄和皮质之间发生接触,从而减小了在承受弯曲负荷时骨骼中的应力峰值。3


    LINK PorEx 技术:
    植入体也针对金属敏感的患者进行了涂层处理。13

    LINK MEGASYSTEM-C – 模块化关节配副 Endo-Model 带有内锥形。全髁置换体和髁内版本。

    模块化髁内全膝关节内置假体 Endo-Model – W 是 Endo-Model 标准型膝关节假体的补充。

    尺寸:
    3 种不同尺寸的股骨和胫骨组件,分别用于左右两侧 (S, M, L)。


    假体柄尺寸:
    模块化假体柄,骨水泥 (CoCrMo):100 mm – 160 mm (Ø 12 – 16 mm)
    模块化假体柄,无骨水泥 (Tilastan):100 mm – 160 mm (Ø 12 – 24 mm)


    材料:
    CoCrMo、UHMWPE 和 LINK PorEx**



    机构:
    可作为轮换版本。


    固定类型:
    骨水泥和无骨水泥


    定心星:
    由于定心星的形状,可以定位在髓管的正中心位置。此外,定心星形防止金属假体柄和皮质之间发生接触,从而减小了在承受弯曲负荷时骨骼中的应力峰值。3


    兼容性:
    Endo-Model-W 与 MEGASYSTEM-C 兼容。可以使用具有由 MEGASYSTEM-C® 制成的外锥形的所有假体柄。
    由于该系统的高度模块化,因此既可以股骨近端和远端区域以很小的进阶实现部分骨置换,也可以实现全股骨置换。
    详细信息请参见 MEGASYSTEM-C。


    *内部名称
    **只作为定制产品

    Images from above:

    • LINK Endo-Model EVO – W Modular Joint Component, Condylar Replacement, Rotating Hinge
    • LINK MEGASYSTEM-C Endo-Model female taper, Intracondylar Version, Rotating Hinge
    • LINK MEGASYSTEM-C Endo-Model female taper, Intracondylar Version, Pure Hinge

    To view this video please enable JavaScript, and consider upgrading to a web browser that supports HTML5 video

    To view this video please enable JavaScript, and consider upgrading to a web browser that supports HTML5 video

    Endo-Model® Standard

    Endo-Model - OP

    Name: 711_Endo-Model_OP_en_2023-01_008.pdf
    文件 3 MB

    Endo-Model - Impl. Instr.

    Name: 711_Endo-Modell_Impl_Instr_en_2023-01_009.pdf
    文件 3 MB

    Endo-Model Knee Systems Bushing Exchange - Surgical Technique

    Name: 712_Endo-Model_Buchsenwechsel_OP_Impl_Instr_en_2022-11_003.pdf
    文件 4 MB

    TrabecuLink Femoral Cones with LINK Endo-Model EVO / LinkSymphoKnee CCK

    Name: 7459_TrabecuLink_Femoral_and_Tibial_Cones_Suppl-Beilage_en-dt_2025-02_002_MAR-02943_050325.pdf
    文件 961 KB

    Endo-Model® 其它

    710_Endo-Model_Teaserflyer_en_2019-08_002.pdf

    Name: 710_Endo-Model_Teaserflyer_en_2019-08_002.pdf
    文件 2 MB

    Endo-Model - Literature Research

    Name: 711_Endo-Model_Literature_en_2019-09_003.pdf
    文件 3 MB

    Endo-Model - Product Rationale

    Name: 710_Endo-Model_Knee_System_Product_en_2020-12_001.pdf
    文件 4 MB

    Endo-Model® MIRETO®

    Endo-Model MIRETO - Impl. Instr.

    Name: 719_Endo-Model_Standard-M_MIRETO_Impl_Instr_en_2022-11_008.pdf
    文件 4 MB

    Endo-Model MIRETO - OP

    Name: 719_MIRETO_OP_RevisionOP_en_2020-09_007.pdf
    文件 4 MB

    Endo-Model® – M

    Endo-Model – M - Impl. & Instr.

    Name: 718_Endo-Model-M_Impl_Instr_en_2022-11_011.pdf
    文件 4 MB

    Endo-Model M - OP

    Name: 718_Endo-Model-M_OP_en_2020-02_006.pdf
    文件 3 MB
    1. Petrou et al., Medium-term results with primary cemented rotating-hinge total knee replacement - A 7- to 15- year follow-up, THE JOURNAL OF BONE & JOINT SURGERY (Br), 2004
    2. Nieder et al., Mid-term results of 1837 cases at Primary Knee Arthroplasty Follow-up period 2-12 years (mean 6.6 years), Scientific Exhibition: 20th SCIOT World Congress, 1996
    3. Engelbrecht et al., Die Rotationsendoprothese des Kniegelenks, Springer Verlag,1984
    4. Bistolfi et al., Endo-Model® Rotating-hinge Total Knee for Revision Total Knee Arthroplasty, Orthopedics, 2013
    5. Sanguineti et al., Total knee arthroplasty with rotating-hinge Endo-Model® prothesis: clinical results in complex primary and revision surgery, Arch Orthop Trauma Surg, 2014
    6. Bistolfi et al., Results with the Endomodell rotating hinged knee prothesis after 18 years of follow-up, University of Turin: Department of Orthopedics and Traumatology
    7. Lazano, Better Outcomes in Severe and Morbid Obese Patients (BMI>35kg/m^2) in Primary Endo-Model® Rotating-Hinge Total Knee Arthroplasty, The Scientific WorldJOURNAL, 2012
    8. Dae Kyung Bae et al, Long-Term Outcome of Total Knee Arthroplasty in Charcot Joint: A 10- to 22-Year Follow-u, THE JOURNAL OF Arthroplasty, 2009
    9. Mavrodontidis et al., Application of the Endomodel Rotating Hinge Knee Prosthesis for Knee Osteoarthritis, Journal of surgical orthopaedic advances, 2008
    10.  Argenson et al., Total knee arthroplasty in femorotibial instability, Orthopäde S45-47, 2000
    11. Atrey et al, A 3 year minimum follow up of Endoprosthetic replacement for distal femoral fractures - An alternative treatment otion, Journal of Orthopaedics,2017
    12. Felli et al., The Endo-Model® rotating hinge for rheumatoid knees, Orthopäde, 2016.
    13. Bader et al. Alternative Werkstoffe und Lösungen in der Knieendoprothetik für Patienten mit Metallallergie, Der Orthopäde 2008

    LINK Endo-Model SL

    • 亮点
    • 了解更多
    • 视频
    • 下载
    • 来源
    • 灵活选择丰富的兼容种植体

    • 外形设计符合解剖结构,潜在地保护骨骼和软组织

    • 兼容 MEGASYSTEM-C,可扩展

    匹配解剖结构

    • 从关节线外翻 6°
    • 胫骨平台向背侧 8° 倾斜
    • 较深的髌骨导向槽产生了髌骨的生理运动和自我导向2











    丰富的假体柄种类

    • 模块化假体柄,骨水泥和无骨水泥,适用于股骨和胫骨
    • 用于胫骨的骨水泥单体假体柄

    可复制的外科技术

    • 与
      LINK GEMINI SL 原生膝关节协调一致的刻面切割
    • 先进的、模块化的器械

    灵活

    • 对于卧式植入体组件,可以在术中从旋转式膝关节更换为铰链式膝关节
    • 基于与 MEGASYSTEM-C 肿瘤和翻修系统完全兼容,具有术中灵活性1

    结构安全性和稳定性

    • 基于 LINK Endo-Model
    • 较大的“跳出距离”(jump distance)提高了膝盖弯曲时的安全性

    在关节平面耦合和脱耦

    • 重新定位过程中的软组织松解很少

    在伸展时保持旋转稳定

    • 即使软组织机构受损也能保持稳定
    • 该植入体的研制是为了在最大程度上保持安全性的基础上达到原生步态。

    保护骨骼和软组织的潜力

    • 牵拉很少和软组织松解最小化的耦合器
    • 通过优化的包装箱尺寸保留骨质

    LINK Endo Model SL Rotational and Hinge Knee Prosthesis – fixed hinge version V02

    To view this video please enable JavaScript, and consider upgrading to a web browser that supports HTML5 video

    LINK Endo Model SL Rotational and Hinge Knee Prosthesis – rotational version V02

    To view this video please enable JavaScript, and consider upgrading to a web browser that supports HTML5 video

    Endo-Model SL - Teaser

    Name: 733_Endo-Model_SL_Teaser_en_2022-05_002.pdf
    文件 1 MB

    Endo-Model SL - Product Rationale

    Name: 733_Endo-Model_SL_Product_en_2020-08_001.pdf
    文件 3 MB

    Endo-Modell SL - Impl. Instr. & OP

    Name: 7331_Endo-Model_SL_SurgTech_en_2025-03_004_MAR-01152.pdf
    文件 9 MB

    LINK PorEx Technology

    Name: 914PorExFlyeren201703004.pdf
    文件 3 MB
    1. Rodolfo Capanna MD, Guido Scoccianti MD, Filippo Frenos MD, Antonio Vilardi MD, Giovanni Beltrami MD, Domenico Andrea Campanacci MD, What was the Suvrival on Megaprostheses in Lower Limb Reconstruction after Tumor Resection, Clin. Orthop. Relat Res. (2015) 473: 820-830
    2. H. Thabe, „Auswirkungen verschiedener konstruktiver Prothesenmerkmale auf Langzeitergebnisse“, Akt Rheumatol 2013;38



    其它参考文献

    Entwicklung basiert auf der erfolgreichen und langjährig bewährten Endo-Modell® Rotations- und Scharnierknieversion.

    E. Engelbrecht, A. Siegel, J. Röttger, and Prof. H. W. Buchholz*
    Statistics of Total Knee Replacement: Partial and Total Knee
    Replacement, Design St. Georg
    Journal of Clinical Orthopaedics, 1976, No. 120, pp 54-64 (K3)

    E. Engelbrecht, E. Nieder, E. Strickle, A. Keller
    Intrakondyläre Kniegelenkendoprothese mit Rotationsmöglichkeit
    – ENDO-MODELL®
    CHIRURG 52: 368-375 (1981) (K1)

    R. Dederich und L. Wolf
    Kniegelenkprothesen-Nachuntersuchungsergebnisse
    Unfallheilkunde (1982) 85:359-368 (K2)

    J. Röttger, K. Heinert
    Die Knieendoprothesensysteme (Schlitten- und Scharnierprinzip).
    Beobachtungen und Ergebnisse nach 10 Jahren Erfahrung mit
    über 3700 Operationen.
    Z. Orthop. 122(1984) 818-826 (K17)

    E. Nieder, E. Engelbrecht, A. Keller
    Totale intrakondyläre Scharniergelenkendoprothese mit
    Rotationsmöglichkeit – Endo-Modell®
    Sonderdruck aus Heft 5: Orthopädische Praxis, 1987, 23. Jahresgang,
    Seite 402-412 (K34)

    K. Heinert, E. Engelbrecht
    Total Knee Replacement - Experience with a Surface and
    Total Knee Replacement: Further Development of the Model
    St. Georg®. 2400 Sledges and Hinges
    Proceedings of the International Symposium on Total Knee
    Replacement, May 19-20, 1987, Nagoya, Japan
    Springer Verlag:, Berlin Heidelberg, New York Tokyo (1987),
    pp 257-273 (K53)

    E. Engelbrecht, M.D.
    The Tibial Rotating Knee Prosthesis “Endo” Model: Surg.Technique
    The Journal of Orthopaedic Surgical Techniques, Volume 3,
    Number 2, 1987 (K36)

    K. Heinert, E. Engelbrecht
    Langzeitvergleich der Knie-Endoprothesensysteme St. Georg®
    10-Jahres-Überlebensraten von 2236 Schlitten- und Scharnier-
    Endoprothesen
    Der Chirurg (1988) 59:755-762 (K38)

    F. Madsen, P. Kjarsgaard-Andersen, M. Juhl, O. Sneppen
    A Custom-Made Prosthesis for the Treatment of Supracondylar
    Femoral Fractures after Total Knee Arthroplasty: Report of Four Cases
    Journal of Orthopaedic Trauma, Vol. 3, No. 4, pp. 333-337,1989 (K42)

    E. Nieder
    Schlittenprothese, Rotationsknie und Scharnierprothese Modell
    St. Georg® und Endo-Modell®. Differentialtherapie in der primären
    Kniegelenkalloarthroplastik
    Orthopäde (1991) 20:170-180 (K45)

    G. von Förster, D. Klüber und U. Käbler
    Mittel- bis langfristige Ergebnisse nach Behandlung von 118 periprothetischen
    Infektionen nach Kniegelenkersatz durch einzeitige
    Austauschoperationen
    Orthopäde(1991) 20: 244-252 (K46)

    Adolph V. Lombardi, Jr, Thomas H. Mallory, Robert W. Eberle, and
    Joanne B. Adams
    Results of Revision Total Knee Arthroplasty Using Constrained
    Prostheses
    Seminars in Arthroplasty, Vol 7, No.4 (October), 1996: pp 349-355

    E. Engelbrecht, E. Nieder, D. Klüber
    Reconstruction of the Knee - Ten to Twenty Years of Knee Arthroplasty at
    the Endo-Klinik: A Report on the Long-term Follow-up of the St. Georg®
    Hinge and the Medium-term Follow-up of the Rotating Knee Endo-Model®
    Springer Verlag: Tokyo, Berlin, Heidelberg, New York (1997) (K57)

    E. Nieder
    Revisionsalloarthroplastik des Kniegelenks
    Sonderausgabe aus: Orthopädische Operationslehre, Band II/1:
    Becken und untere Extremität
    Herausgegeben von R. Bauer, F. Kerschbaumer und S. Poisel

    F. Alt, U. Sonnekalb, N. Walker
    Unikondyläre Schlittenprothese versus scharniergeführte
    Totalendoprothesen des Kniegelenkes
    Orthopädische Praxis 1/98, 34.Jahresgang, Seite 20-24, 1998 (K61)

    A. V. Lombardi, T. H. Mallory, R. E. Eberle, J. B. Adams
    Rotating Hinge Prosthesis in Revision Total Knee Arthroplasty:
    Indications and Results
    A Reprint from Surgical Technology International VI, 1998 (K55)

    E. Nieder, G.W.Baars, A. Keller
    Totaler Tibia-Ersatz Endo-Modell®
    Orthopädie Aktuell: Nr. 5/1998, LINK News (K60)

    S. Schill, H. Thabe
    Die periprothetische Knieinfektion – Therapiekonzept, Wertigkeit
    und mittelfristige Ergebnisse
    Aktuelle Rheumatologie, Heft 5, 24.Jahrgang, 1999, pp 153-160 (K70)

    G.W. Baars
    Knieendoprothetik: Das optimale Implantat für jeweilige Indikation finden
    Orthopäde 2000 (Suppl1) 29: S1-2

    M. Zinck, R, Sellkau
    Rotationsknieprothese Endo-Modell®- Geführter Oberflächenersatz
    mit Sti(e)l
    Orthopäde 2000 (Suppl1) 29: S 38-42

    M. Crowa, E. Cenna, C. Olivero
    Rotating knee prosthesis – Surface or hinge replacement?
    Orthopäde 2000 (Suppl1) 29: S 43-44

    J-N. Argenson. J M. Aubaniac
    Total Knee arthroplasty in femorotibial instability
    Orthopäde 2000.29:S 45-47, Springer Verlag 2000 (K72)

    M. von Knoch, R. Brocks, C. Siegmüller, G. Ribaric, L. Leupolt,
    G. von Förster
    Knieflexion nach Rotationsknieendoprothese
    Z. Orthop 2000; 138: 66-68 (K71)

    R.E. Windsor, K. Steinbrink
    Controversies in Total Knee Replacement Two-stage exchange is the
    optimal treatment for an infected total knee replacement
    Oxford University Press 2001 (K78)

    A. Katzer, R. Sellckau, W. Siemssen, G. von Foerster
    ENDO-Modell Rotating Knee Prosthesis: a functional analysis
    J Orthopaed Traumatol (2002) 3:163-170, Springer Verlag 2002

    Thomas Nau, MD, E. Pflegerl, MD, J. Erhart, MD, and V. Vecsei, MD
    Primary Total Knee Arthroplasty for Periarticular Fractures
    The Journal of Arthroplasty, Vol 18, No 8, 2003 (K82)

    G. Petrou, H. Petrou, C. Tilkeridis, T. Stavrakis, T. Kapetsis, N.
    Kremmidas, M. Gavras
    Medium-term results with a primary cemented rotating-hinge total
    knee replacement
    A 7-TO 15-YEAR FOLLOW-UP
    J Bone Joint Surg (Br), 2004; 86-B :813-17 (K84)

    M.R. Utting, J.H. Newman
    Customised hinged knee replacement as a salvage procedure for
    failed total knee arthroplasty
    The Knee 11 (2004) 475-479 (K86)

    Nayana Joshi, Antonio Navarro-Quilis
    Is There a Place for Rotating-Hinge Arthroplasty in Knee Revision
    Surgery for Aseptic Loosening?
    The Journal of Arthroplasty 2008; 23(8):1204-1210 (K94)

    M. Napp, M. Frank, M. Witt
    Pathologische Fraktur des distalen Femurs bei Knie-TEP
    Der Orthopäde, Band 38, Heft 10, Oktober 2009 (K96)

    Dae Kyung Bae, Sang Jun Song, Kyoung Ho Yoon, Jung Ho Noh
    Long-Term Outcome of Total Knee Arthroplasty in Charocot Joint:
    A 10- to 22- Year Follow-Up
    The Journal of Arthroplasty 2009; 24(8):1152-1156 (K98)




    Waldemar Link GmbH & Co. KG

    Joint Prostheses "Made in Germany"

    产品

    • 髋关节假体
    • 膝关节假体
    • 保留肢体
    • 上肢

    企业简介

    • LINKademy.TV
    • 联系方式

    联系我们

    Barkhausenweg 10
    22339 Hamburg, Germany
    电话 : +49 (0)40-539 95-0
    电邮 : info@link-ortho.com

    一般交易条款(采购、销售) | 公司信息 | 使用条款 | 数据保护声明 | 申请者数据保护声明

    2025 © Waldemar Link GmbH & Co. KG

    请确认

    根据德国药品广告法规定,以下内容仅供与医疗相关的专业工作人员使用。
    不是,我不属于和医疗相关的专业工作人员

    Login

    User login

    Enter your username and password here in order to log in on the website.
    注册
