LinkSymphoKnee

  • Complete System from Primary to Revision


  • Wide Size Range


  • Streamlined Instruments


  • High-End Materials

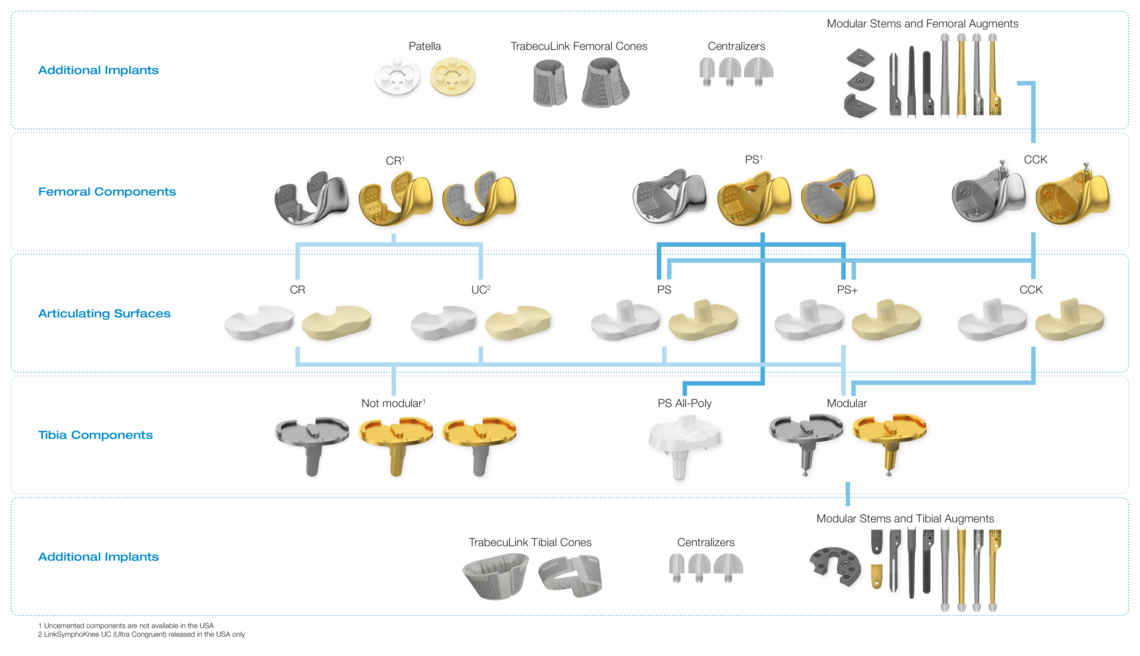

LinkSymphoKnee – System overview

  • Cobalt Chrome and LINK PorEx1 options

  • Wide range of sizes - 14 femoral & 10 tibial

  • 2up – 2down femoral tibial size compatibility

  • CR, PS, PS+, CCK & All-Poly bearings in UHMWPE & Vitamin E infused cross-linked polyethylene with 1mm increments2

  • Elegant, reproducible instruments configured in 3 trays for a standard CR or PS

  • Cost conscious implant choices ideal for same-day surgery

Versions

Fixed Bearing as cruciate ligament conserving (CR), cruciate ligament replacing (PS and PS+) and revision options (CCK) are available. The high compatibility between the components gives the system a high intraoperative flexibility.




1. Soft Tissue Friendly Anterior Flange

2. Wide Proximal Trochlea

3. Harmonic Growth Between Sizes (3mm)

4. Lateralized Trochlear Groove

5. Anatomical Notch Geometry

1. Bone Conserving Box Geometry

2. Post Engagement at 60° Flexion

3. High PS Cam Location

4. SpheroGrip Macrostructure Provides for a Homogeneous
Bone Cement-Implant Interface and Uniform Force
Transmission in the Cement Mantle3

1. 4.5° Anterior Flange

2. Low Profile Patella Flange

3. Gently Decreasing Flexion Radius

4. Graduated Trochlear Groove Depth
1. Robust Central and Posterior Dovetail Locking Detail

2. Antirotation Island Guides Bearing Implantation

3. Flattened Anterior Lip Designed To Reduce Bearing Insertion Angle

4. Keel and Fin Designed to Protect Against Rotational Forces

Revision CCK:

  • Complete revision system suitable for standard and complex anatomical situations

  • Cone friendly femoral and tibial design

  • Vast array of straight and offset cemented and cementless stems

  • Precise instrumentation streamlined into four trays

The LinkSymphoKnee System is implanted by means of a streamlined, lightweight and ergonomic instrument set, allowing for straightforward workflow and high reproducibility. Multi-purpose instruments and elaborated trial components help to reduce the amount of instruments and number of trays, thus enhancing the intra-operative handling and flexibility.



LinkSymphoKnee - System overview

LinkSymphoKnee - Instruments

LinkSymphoKnee - Primary

LinkSymphoKnee - Revision

LinkSymphoKnee - Insert Inlay

LinkSymphoKnee - Perseus smart cutting guide

LinkSymphoKnee CR/PS/PS+ Surgical Technique us

Name: 7502_LinkSymphoKnee_CR_PS_PS__Surgical_Technique_us_2021-08_001_final.pdf
Size: 13 MB

LinkSymphoKnee - ASC Flyer

Name: LinkSymphoKnee_-_ASC_Flyer_us.pdf
Size: 453 KB

LinkSymphoKnee - FFB

Name: LinkSymphoKnee_-_FFB_us.pdf
Size: 926 KB

LinkSymphoKnee - Orthokey Perseues

Name: LinkSymphoKnee_-_Orthokey_Perseues_us.pdf
Size: 307 KB

LinkSymphoKnee PS - Matthew S. Austin MD

Name: LinkSymphoKnee_PS_-_Matthew_S._Austin__MD_us.pdf
Size: 289 KB

LinkSymphoKnee PS - Alejandro Gonzalez Della Valle MD

Name: LinkSymphoKnee_PS_-_Alejandro_Gonzalez_Della_Valle__MD_us.pdf
Size: 292 KB

LinkSymphoKnee PS All Poly - Russel T. Nevins MD

Name: LinkSymphoKnee_PS_All_Poly_-_Russel_T._Nevins__MD_us.pdf
Size: 278 KB

LinkSymphoKnee CR - Brett R. Levine MD

Name: LinkSymphoKnee_CR_-_Brett_R._Levine__MD_us.pdf
Size: 291 KB

LinkSymphoKnee PorEx

Name: LinkSymphoKnee_PorEx_us.pdf
Size: 435 KB

LINK PorEx

Name: LINK_PorEx_us.pdf
Size: 342 KB

[Translate to Englisch (US):]

  1. Titanium Niobium Nitride Coating.

  2. 1mm increments for certain implant constructs only.

  3. Internal Technical Report.
